11.7kWh ESS
SAFE: Grade A LiFePO₄ Cell
RELIABLE: Compatible with Major PCS Brand
SCALABLE: Scalable From 10.5 To 737.1 kWh
Product Description
Discover how our comprehensive solutions empower your journey.
Nominal Voltage:51.2 Vdc
Nominal Capacity:230 Ah
Charge Power:6.14 kW
Cell Technology: LiFePO₄ ,Lithium Iron Phosphate
DischargePower:8.7kW
Short Circuit Current:540A
Display:Color touchscreen
Weight (kg):93kg
Operating Temperature:Charge: 0~55°C / Discharge: -20°C ~ 55°C
Operating / Storage Humidity:≤95% RH
Max Operating Altitude:≤2000m
Battery Energy:11.7 kWh
Charge Current:100 A
Discharge Current:170A
IP Rating:IP20
Communication:CAN, RS485, RS232
Dimension (WxDxH mm):465x 230x 695 mm

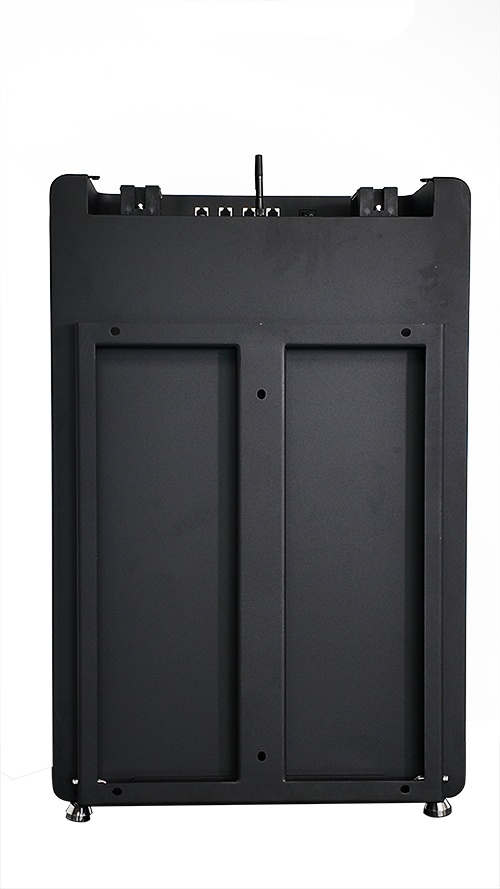

Installation:Floor Stand or Wall Mount
Scalability:Max 63 batteries in parallel
Cycle Life:6000 Cycles @ 80% DoD /25°C/0.5C, 60% EOL
Certificates:IEC 62619, IEC 61000, IEC 62040, UN38.3
Product Ordering Part:SUN-11.7K Battery(Cable / wall mount included)
